Starter

BOSCH

Reference: 0 986 016 380

OTTO code: BOS-0 986 016 380


Surcharge details: This product is subject to a €85.00 surcharge which will be charged as part of the shipping cost when added to the cart. A refund will be issued in accordance to our Terms & Conditions.

More details

Shipped: This product is not currently in stock

€ 352.63 incl. VAT

Add to cart
  • MERCEDES-BENZ: A 004 151 06 01 80 / A004151060180
  • MERCEDES-BENZ: A 004 151 69 01 / A0041516901
  • MERCEDES-BENZ: A 004 151 69 01 80 / A004151690180
  • MERCEDES-BENZ: A 005 151 06 01 / A0051510601
  • MERCEDES-BENZ: A 005 151 06 01 80 / A005151060180
  • MERCEDES-BENZ: A 161 151 33 01 / A1611513301
  • MERCEDES-BENZ: 004 151 06 01 80 / 004151060180
  • MERCEDES-BENZ: 004 151 69 01 / 0041516901
  • MERCEDES-BENZ: 004 151 69 01 80 / 004151690180
  • MERCEDES-BENZ: 005 151 06 01 / 0051510601
  • MERCEDES-BENZ: 005 151 06 01 80 / 005151060180
  • MERCEDES-BENZ: 161 151 33 01 / 1611513301
  • VW: 069 911 023 G / 069911023G
  • SSANGYONG: 004 151 69 01 / 0041516901
  • SSANGYONG: 005 151 06 01 / 0051510601
  • SSANGYONG: 161 151 33 01 / 1611513301
  • DAEWOO: 004 151 69 01 / 0041516901
  • DAEWOO: 1611513301
BOSCH Starter 0 986 016 380

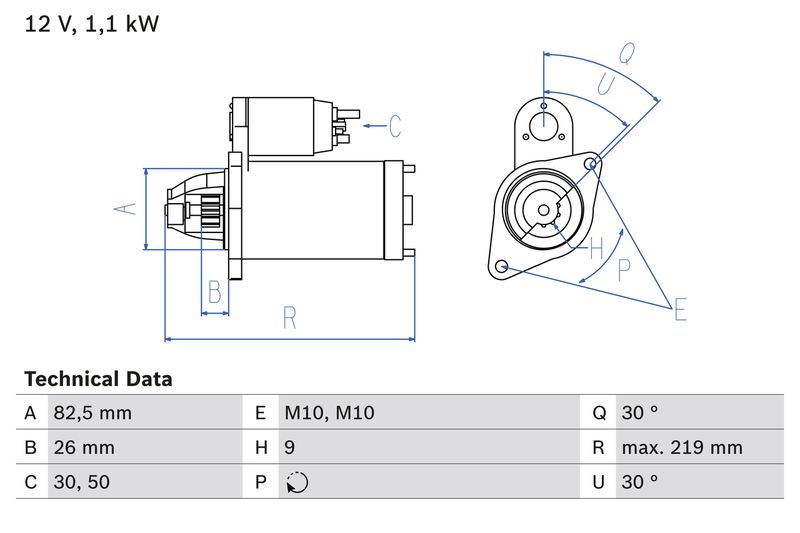

Specifications
  • Exchange Part
  • Voltage [V]: 12
  • Rated Power [kW]: 1,1
  • Number of mounting bores: 0
  • Number of threaded holes: 2
  • Number of Teeth: 9
  • Clamp: 50
  • Clamp: 30
  • Flange Diameter [mm]: 82,5
  • Rotation Direction: Clockwise rotation
  • Pinion Rest Position [mm]: 26
  • Starter Type: Self-supporting
  • Thread Size: M10
  • Thread Size 1: M10x1.5
  • Length [mm]: 219
  • Position/Degree: rechts
  • Mounting Angle [degrees]: 30
  • Jaw opening angle measurement [Degree]: 30
  • Mounting bore angle measurement [degree]: 30
