Catalogue

You must select a vehicle.

Starter

BOSCH

Reference: 0 986 018 570

OTTO code: BOS-0 986 018 570


Surcharge details: This product is subject to a €85.00 surcharge which will be charged as part of the shipping cost when added to the cart. A refund will be issued in accordance to our Terms & Conditions.

More details

Shipped: This product is not currently in stock

€ 373.19 incl. VAT

Add to cart
  • MERCEDES-BENZ: A 004 151 85 01 / A0041518501
  • MERCEDES-BENZ: A 004 151 85 01 80 / A004151850180
  • MERCEDES-BENZ: A 005 151 11 01 / A0051511101
  • MERCEDES-BENZ: A 005 151 11 01 80 / A005151110180
  • MERCEDES-BENZ: A 005 151 21 01 / A0051512101
  • MERCEDES-BENZ: A 005 151 21 01 80 / A005151210180
  • MERCEDES-BENZ: A 005 151 47 01 / A0051514701
  • MERCEDES-BENZ: A 005 151 47 01 80 / A005151470180
  • MERCEDES-BENZ: A 006 151 03 01 / A0061510301
  • MERCEDES-BENZ: A 006 151 03 01 80 / A006151030180
  • MERCEDES-BENZ: 004 151 85 01 / 0041518501
  • MERCEDES-BENZ: 004 151 85 01 80 / 004151850180
  • MERCEDES-BENZ: 005 151 11 01 / 0051511101
  • MERCEDES-BENZ: 005 151 11 01 80 / 005151110180
  • MERCEDES-BENZ: 005 151 21 01 / 0051512101
  • MERCEDES-BENZ: 005 151 21 01 80 / 005151210180
  • MERCEDES-BENZ: 005 151 47 01 / 0051514701
  • MERCEDES-BENZ: 005 151 47 01 80 / 005151470180
  • MERCEDES-BENZ: 006 151 03 01 / 0061510301
  • MERCEDES-BENZ: 006 151 03 01 80 / 006151030180
BOSCH Starter 0 986 018 570

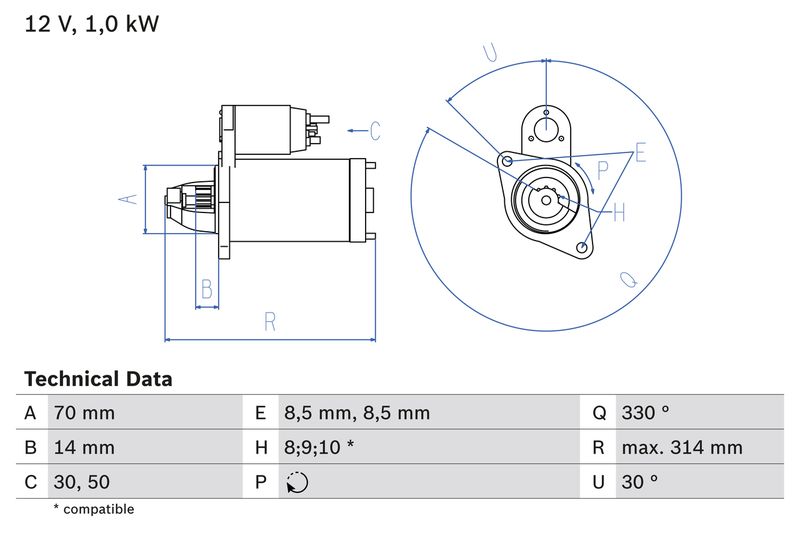

Specifications
  • Exchange Part
  • Voltage [V]: 12
  • Rated Power [kW]: 1
  • Number of mounting bores: 2
  • Number of threaded holes: 0
  • Number of Teeth: 8
  • Number of Teeth: 10
  • Number of Teeth: 9
  • Clamp: 50
  • Clamp: 30
  • Flange Diameter [mm]: 70
  • Rotation Direction: Clockwise rotation
  • Pinion Rest Position [mm]: 14
  • Starter Type: Self-supporting
  • Bore Diameter [mm]: 8,5
  • Bore Diameter 2 [mm]: 8,5
  • Length [mm]: 314
  • Position/Degree: links
  • Mounting Angle [degrees]: 30
  • Jaw opening angle measurement [Degree]: 330
  • Mounting bore angle measurement [degree]: 30
