Alternator

BOSCH

Reference: 0 986 041 810

OTTO code: BOS-0 986 041 810


Surcharge details: This product is subject to a €85.00 surcharge which will be charged as part of the shipping cost when added to the cart. A refund will be issued in accordance to our Terms & Conditions.

More details

Shipped: This product is not currently in stock

€ 556.86 incl. VAT

Add to cart
  • BMW: 12 31 1 432 980 / 12311432980
  • BMW: 12 31 1 432 981 / 12311432981
  • BMW: 12 31 1 432 985 / 12311432985
  • BMW: 12 31 1 432 986 / 12311432986
  • BMW: 12 31 1 432 987 / 12311432987
  • BMW: 12 31 7 501 593 / 12317501593
  • BMW: 12 31 7 501 595 / 12317501595
  • BMW: 12 31 7 501 597 / 12317501597
  • BMW: 12 31 7 501 599 / 12317501599
  • BMW: 12 31 7 501 690 / 12317501690
  • BMW: 12 31 7 501 755 / 12317501755

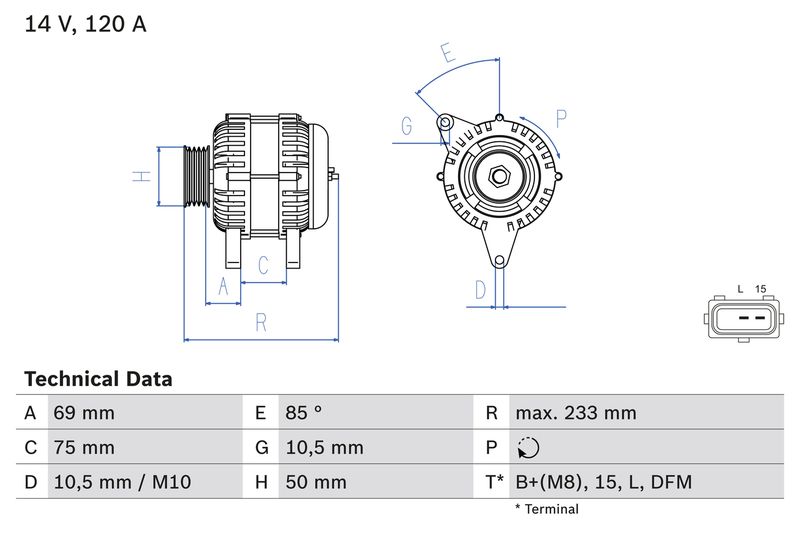

BOSCH Alternator 0 986 041 810
Specifications
  • Exchange Part
  • Voltage [V]: 14
  • Alternator Charging Current [A]: 120
  • Fastening Type: Double Pivot Lever
  • Alternator Type: excl. vacuum pump
  • Distance from belt pulley to alternator [mm]: 69,1
  • Rotation Direction: Clockwise rotation
  • Pulleys: with multi-belt pulley
  • Number of grooves: 6
  • Belt Pulley Ø [mm]: 49,5
  • Clamp: DFM
  • Clamp: L
  • Clamp: B1+(M8)
  • Plug Type ID: PL113
  • Length [mm]: 233
  • Recommended additional repairs: V-Belt/V-ribbed Belt
