Brake Disc

ATE

Reference: 24.0112-0176.1

OTTO code: ATE-412176

Shipped: This product is not currently in stock

€ 83.17 incl. VAT

Add to cart
  • VAG: 4F0 615 601 G / 4F0615601G

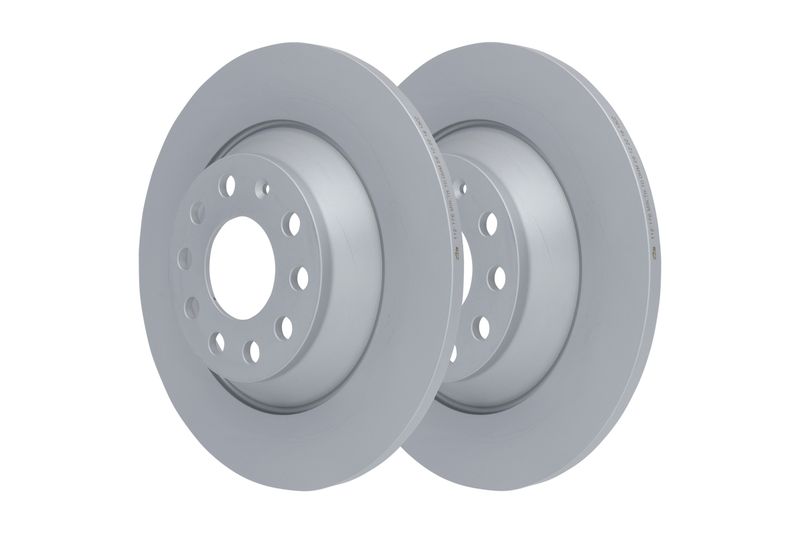

ATE Brake Disc 24.0112-0176.1
Specifications
  • Outer Diameter [mm]: 302,0
  • Brake Disc Thickness [mm]: 12,0
  • Minimum thickness [mm]: 10,0
  • Brake Disc Type: solid
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 9
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 42,4
  • Centering Diameter [mm]: 68,0
  • Inner Diameter [mm]: 176,5
  • Bore Diameter [mm]: 15,3
  • MAPP code available
  • Test Mark: E1 90R-02C0165/0908
