Brake Disc

ATE

Reference: 24.0126-0123.1

OTTO code: ATE-426123

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 101.76 incl. VAT

  • RENAULT: 77 01 206 614 / 7701206614
  • RENAULT: 82 00 007 122 / 8200007122
  • RENAULT: 86 71 016 878 / 8671016878

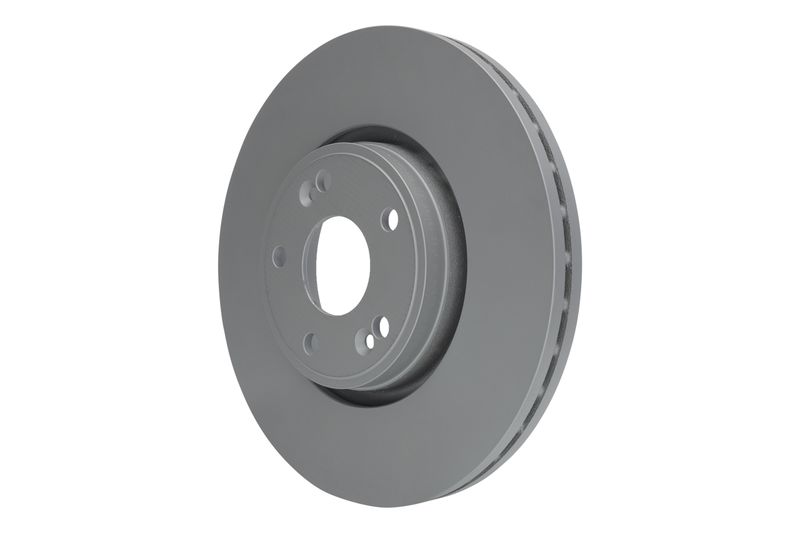

ATE Brake Disc 24.0126-0123.1
Specifications
  • Outer Diameter [mm]: 300,0
  • Brake Disc Thickness [mm]: 26,0
  • Minimum thickness [mm]: 22,8
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Number of Holes: 5
  • Surface: Coated
  • MAPP code available
  • Height [mm]: 47,0
  • Centering Diameter [mm]: 61,0
  • Inner Diameter [mm]: 139,6
  • Bolt Hole Circle Ø [mm]: 108,0
  • Bore Diameter [mm]: 13,5
  • Test Mark: E1 90R-02C0118/0070
