Brake Disc

ATE

Reference: 24.0130-0171.1

OTTO code: ATE-430171

Shipped: within 24hrs

4
NB: any items ordered above this stock level will be placed on backorder.

€ 118.41 incl. VAT

  • MERCEDES-BENZ: 209 421 00 12 / 2094210012
  • MERCEDES-BENZ: A 209 421 00 12 / A2094210012

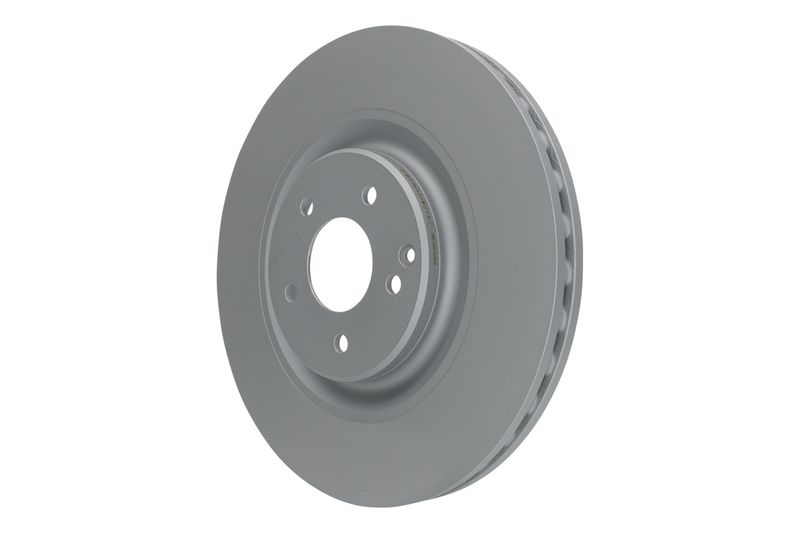

ATE Brake Disc 24.0130-0171.1
Specifications
  • Outer Diameter [mm]: 345,0
  • Brake Disc Thickness [mm]: 30,0
  • Minimum thickness [mm]: 27,4
  • Brake Disc Type: Vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 46,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 154,0
  • Bore Diameter [mm]: 13,0
  • MAPP code available
  • Test Mark: E1 90R-02C0115/0878
