Catalogue

You must select a vehicle.

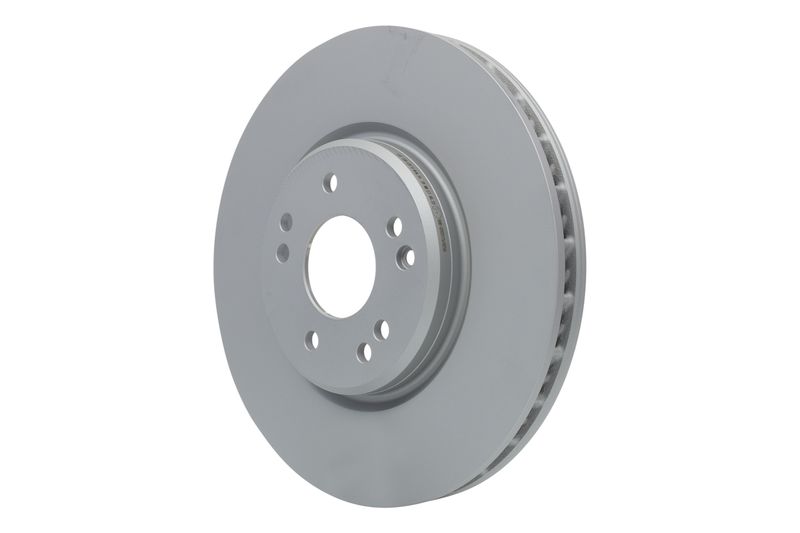

Brake Disc

ATE

Reference: 24.0130-0122.1

OTTO code: ATE-430122

Shipped: This product is not currently in stock

€ 98.93 incl. VAT

Add to cart
  • MERCEDES-BENZ: 129 421 18 12 / 1294211812
  • MERCEDES-BENZ: 129 421 16 12 / 1294211612
  • MERCEDES-BENZ: A 129 421 16 12 / A1294211612
  • MERCEDES-BENZ: A 129 421 18 12 / A1294211812
ATE Brake Disc 24.0130-0122.1
Specifications
  • Outer Diameter [mm]: 320,0
  • Brake Disc Thickness [mm]: 30,0
  • Minimum thickness [mm]: 28,0
  • Brake Disc Type: Vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • paired article number: 24.0130-0121.1
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 50,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 154,0
  • Bore Diameter [mm]: 13,0
  • MAPP code available
  • Test Mark: E1 90R-02C0115/0250
