Brake Disc

ATE

Reference: 24.0124-0222.1

OTTO code: ATE-424222

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 78.01 incl. VAT

  • MERCEDES-BENZ: 415 420 00 01 / 4154200001
  • MERCEDES-BENZ: 415 420 07 01 / 4154200701
  • MERCEDES-BENZ: A 415 420 00 01 / A4154200001
  • MERCEDES-BENZ: A 415 420 07 01 / A4154200701
  • NISSAN: 40206-00Q2G
  • NISSAN: 40206-00Q2L
  • RENAULT: 77 01 209 839 / 7701209839
  • RENAULT: 82 01 464 604 / 8201464604

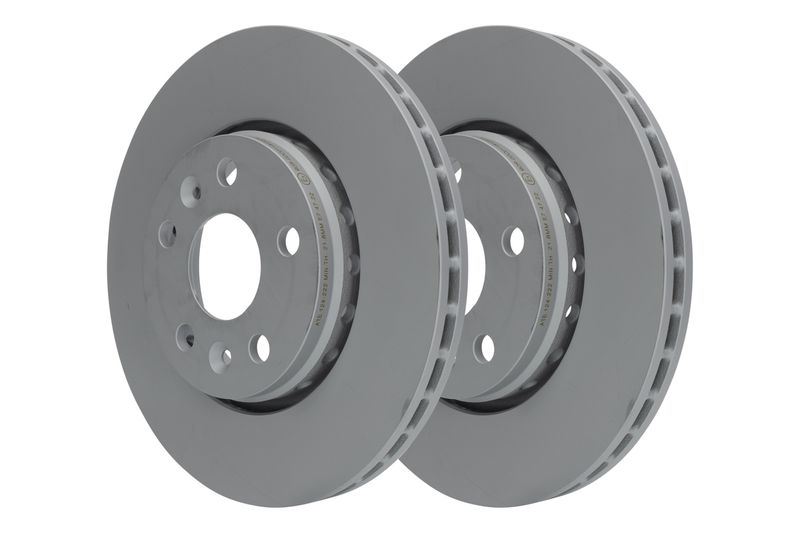

ATE Brake Disc 24.0124-0222.1
Specifications
  • Outer Diameter [mm]: 280,0
  • Brake Disc Thickness [mm]: 24,0
  • Minimum thickness [mm]: 21,8
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 108,0
  • Height [mm]: 44,0
  • Centering Diameter [mm]: 61,0
  • Inner Diameter [mm]: 140,0
  • Bore Diameter [mm]: 15,8
  • Test Mark: E1 90R-02C0118/0325
